Google Workspace SAML role mapping

Enterprise teams often want one MailSlurp organization to contain several locked-down environments. A DEV user should be able to sign in through Google Workspace and work only in DEV, while a PTEST user signs in through the same identity provider and can enter only PTEST. Without claim-to-role mapping, admins have to keep those MailSlurp roles in sync by hand after each SSO sign-in.

Google Workspace SAML role mapping lets Google remain the source of truth for environment access. Google authenticates the user and sends a groups attribute in the SAML assertion. MailSlurp reads that attribute during sign-in, assigns the matching organization role, and then applies the role-restricted environment grants configured in the organization.

Use this pattern when one Google Workspace tenant controls access to DEV, PTEST, STEST, VTEST, or similar MailSlurp environments.

Recommended model

For most teams, use one MailSlurp organization with multiple environments:

• default for organization administration and shared setup
• DEV for development users
• PTEST for pre-production testing
• STEST for system testing
• VTEST for validation testing

Create one MailSlurp role per environment and restrict each environment grant to the matching role. Google Workspace decides which role a user receives by sending the group value in the SAML assertion.

Use separate MailSlurp organizations instead when each environment needs its own SAML configuration, certificate, custom domains, or administrative boundary.

Before you start

You need:

1. A MailSlurp plan with organizations, roles, environments, and SAML SSO.
2. A MailSlurp organization and one environment account per isolated environment.
3. One MailSlurp role per environment access group.
4. Google Workspace admin permissions to create groups and a custom SAML app.
5. Google users or groups that represent each MailSlurp environment.

For the base SAML setup, start with SAML SSO setup. For environment access design, see Environments and Roles and permissions.

Create the MailSlurp roles and environments

In MailSlurp:

1. Create the organization.
2. Create environment accounts for each environment you want to isolate.
3. Create roles such as DEV user, PTEST user, STEST user, and VTEST user.
4. Grant the organization access to each environment.
5. Restrict each environment grant to the matching role.

For example:

Environment	MailSlurp role	Intended Google assignment
DEV	DEV user	MailSlurp DEV users group
PTEST	PTEST user	MailSlurp PTEST users group
STEST	STEST user	MailSlurp STEST users group
VTEST	VTEST user	MailSlurp VTEST users group

Give each SAML-managed role only the permissions those users need. If the role exists only to unlock an environment, keep the permission set narrow and let the environment grant provide the boundary.

Create Google Workspace groups

In Google Admin, create one group per MailSlurp environment. Use clear names that will remain stable, because the emitted SAML group value is what MailSlurp maps to a role.

Example groups:

Google group	Example group email	MailSlurp role
MailSlurp DEV users	mailslurp-dev-users@example.com	DEV user
MailSlurp PTEST users	mailslurp-ptest-users@example.com	PTEST user
MailSlurp STEST users	mailslurp-stest-users@example.com	STEST user
MailSlurp VTEST users	mailslurp-vtest-users@example.com	VTEST user

Add each user to the group for the environment they should access. A user who belongs to multiple mapped groups can receive multiple MailSlurp roles.

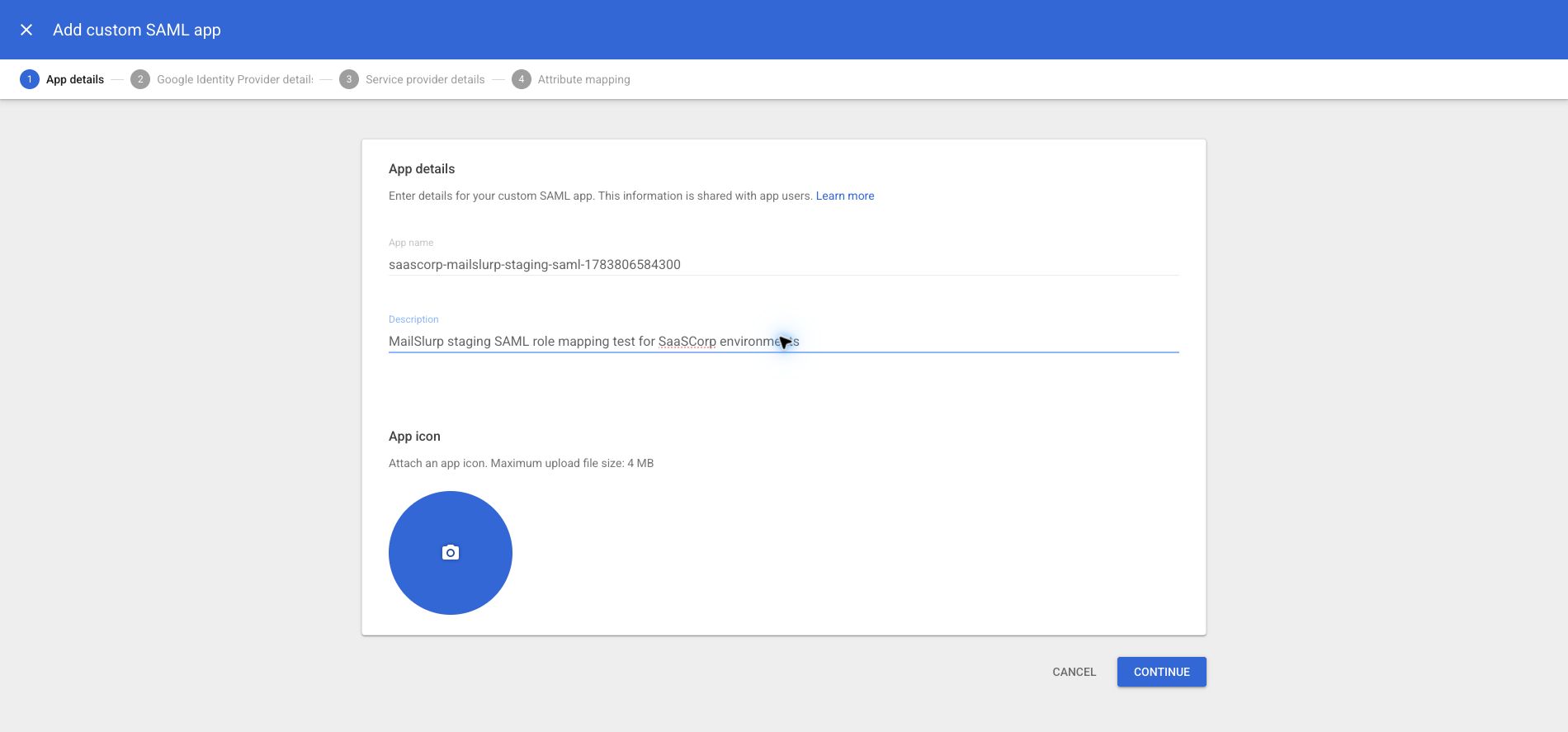

Create the Google SAML app

In Google Admin, go to Apps > Web and mobile apps and create a custom SAML app for MailSlurp.

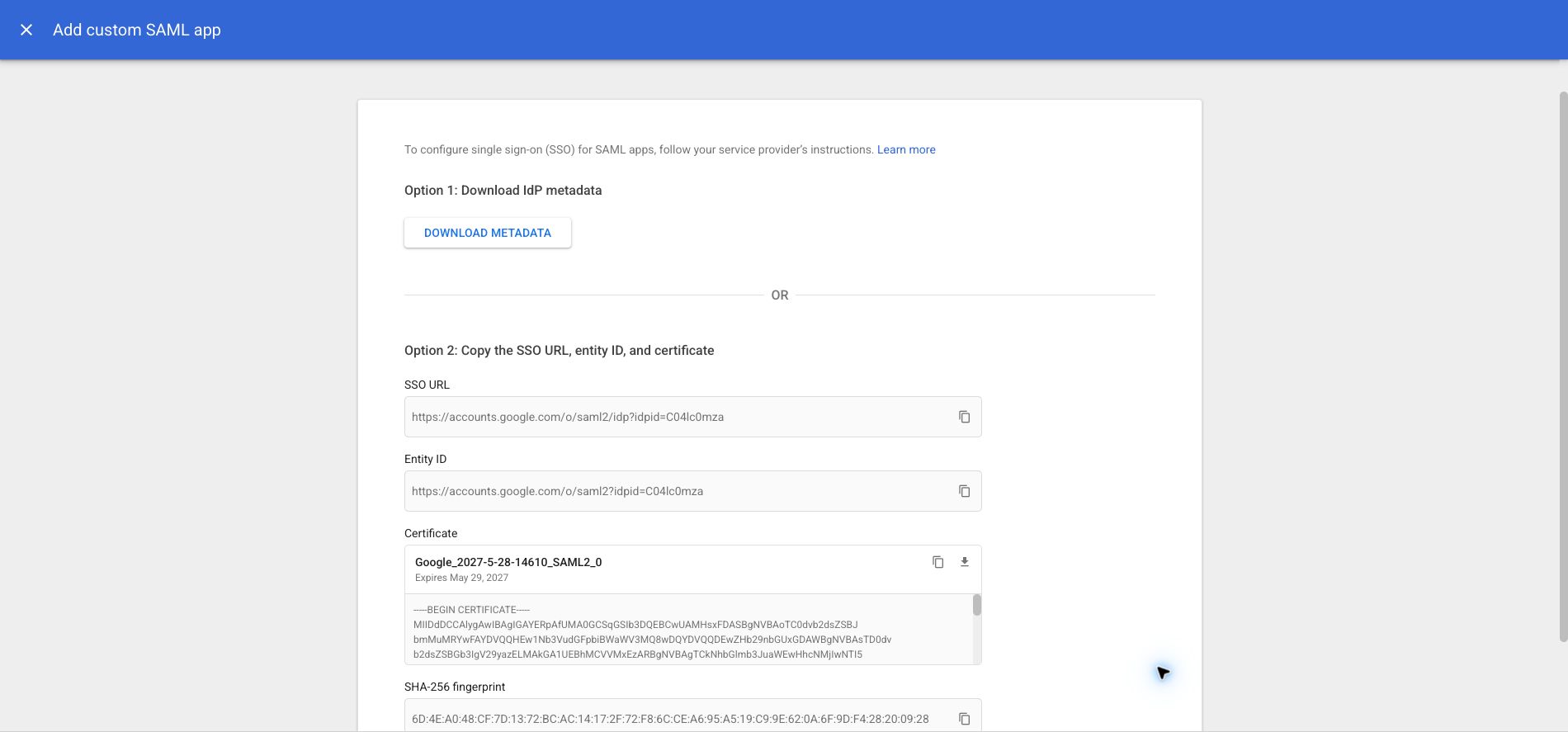

On the Google identity provider details step, copy or download:

• SSO URL
• Entity ID
• Certificate

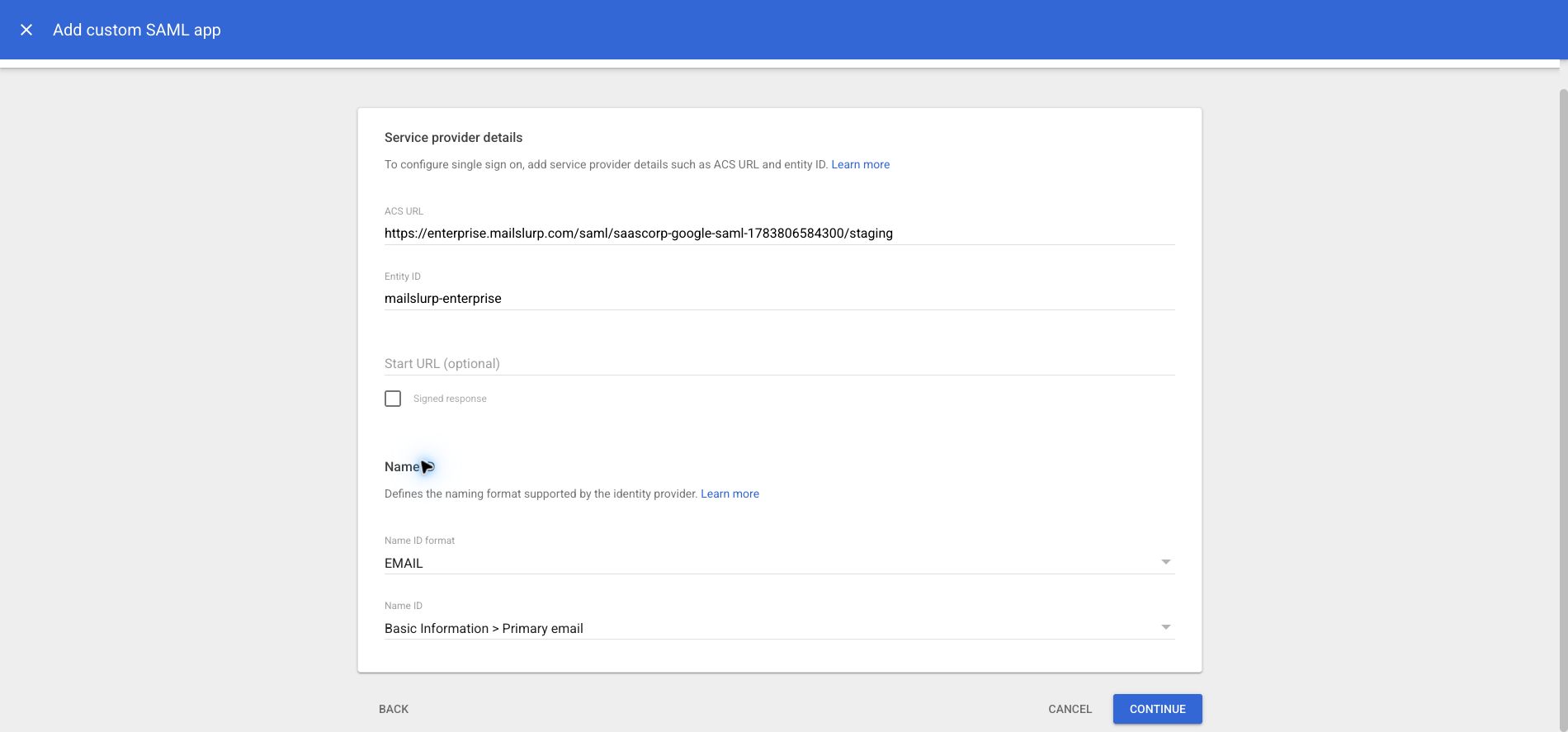

Configure the service provider values

Use the MailSlurp SAML settings page to copy the service provider values into Google:

Google field	MailSlurp value
ACS URL	MailSlurp assertion consumer service URL
Entity ID	MailSlurp audience URI / service provider entity ID
Name ID format	Email address
Name ID	Basic information > Primary email

The ACS URL normally looks like:

https://enterprise.mailslurp.com/saml/<organization-slug>/

For a staging or test-only setup, use the staging ACS URL shown in MailSlurp for that environment.

If Google reports that the Entity ID is already in use, choose a unique Entity ID for this Google app and set the same value as the MailSlurp SAML audience. The Entity ID in Google and the audience in MailSlurp must match.

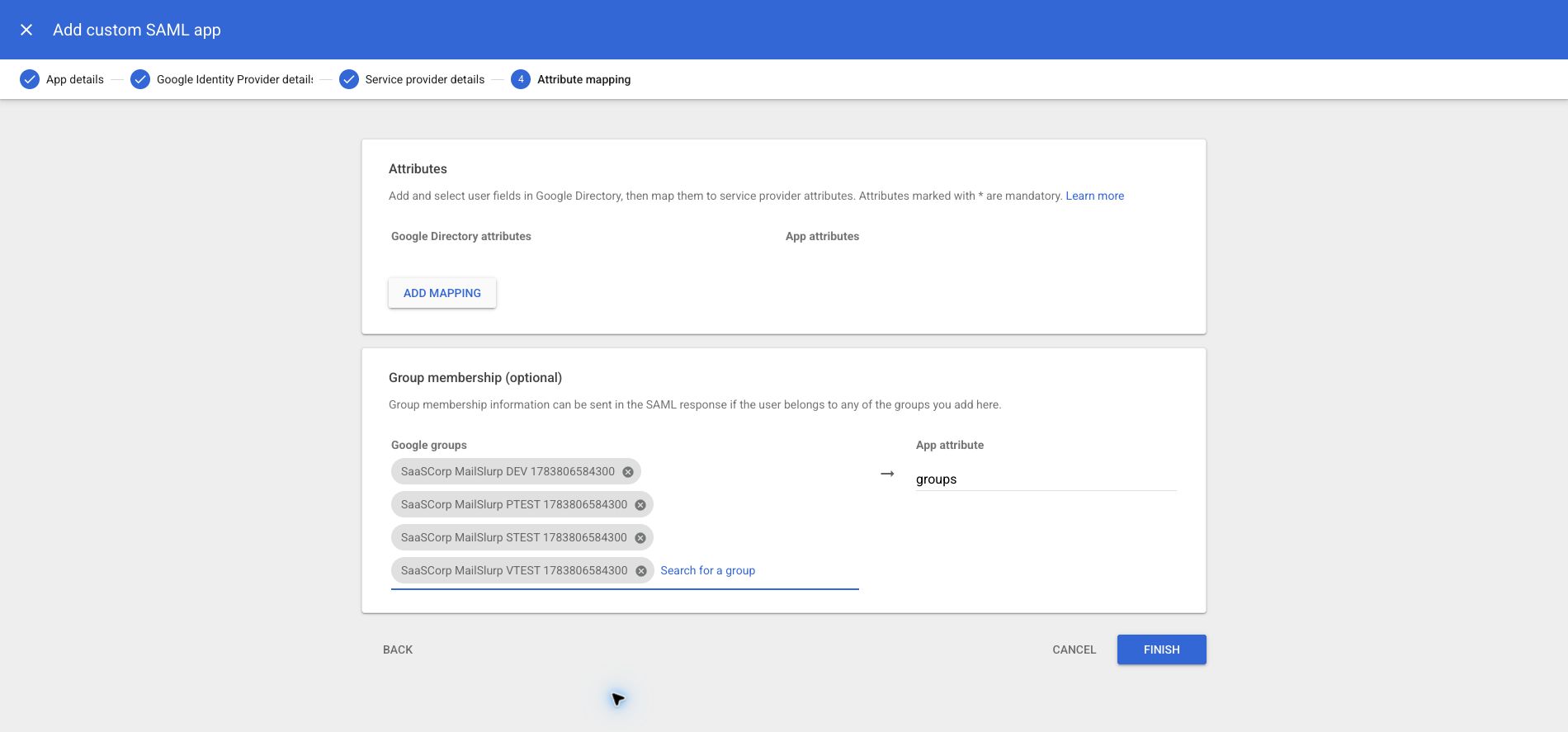

Add the Google groups attribute

On the Google attribute mapping step, add a group membership mapping:

Google source	App attribute
Group membership	groups

Select only the Google groups that should affect MailSlurp access. This keeps the SAML assertion small and avoids sending unrelated group membership to MailSlurp.

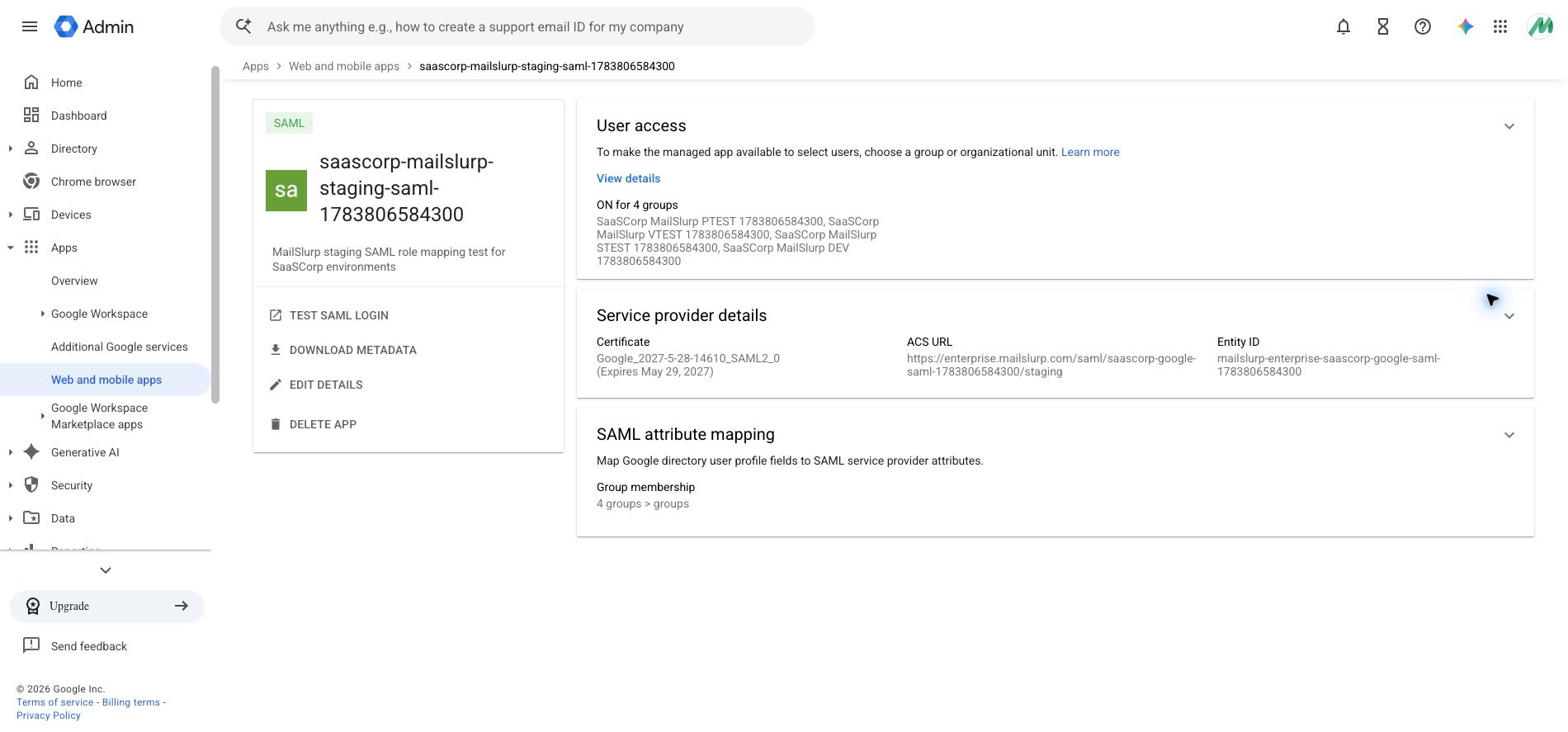

Turn the app on for environment groups

Keep the app off for everyone by default, then turn it on only for the groups that should be able to launch MailSlurp SSO.

In Google Admin:

1. Open the SAML app.
2. Open User access.
3. Keep broad organizational units off unless the whole unit should sign in.
4. Add each environment group.
5. Set the service status to ON for those groups.
6. Save the access changes.

The app details page should show group-scoped access such as ON for 4 groups.

Map Google groups to MailSlurp roles

In the MailSlurp organization SAML settings, create one SAML role mapping per Google group:

MailSlurp field	Value
Provider preset	Generic role
Claim name	groups
Claim value	Exact group value emitted by Google
Role	Matching MailSlurp role

Example mappings:

Claim name	Claim value	MailSlurp role
groups	MailSlurp DEV users	DEV user
groups	MailSlurp PTEST users	PTEST user
groups	MailSlurp STEST users	STEST user
groups	MailSlurp VTEST users	VTEST user

Google Workspace can emit the selected group as a display name in the SAML assertion. Some tenants or configurations may emit a group email address instead. The reliable rule is to map the exact value seen in the assertion. When in doubt, test one assigned user and add a mapping for the emitted display name, group email, or both.

Configure MailSlurp SAML settings

Paste the Google identity provider values into MailSlurp:

MailSlurp field	Google value
Entry point / SSO URL	Google SSO URL
Issuer	Google Entity ID
Certificate	Google certificate
Audience	Google app Entity ID
ACS URL	MailSlurp callback URL

For Google Workspace, signed assertions and email NameID are the normal setup. Leave advanced compatibility fields at their defaults unless your Google tenant or MailSlurp support advises otherwise.

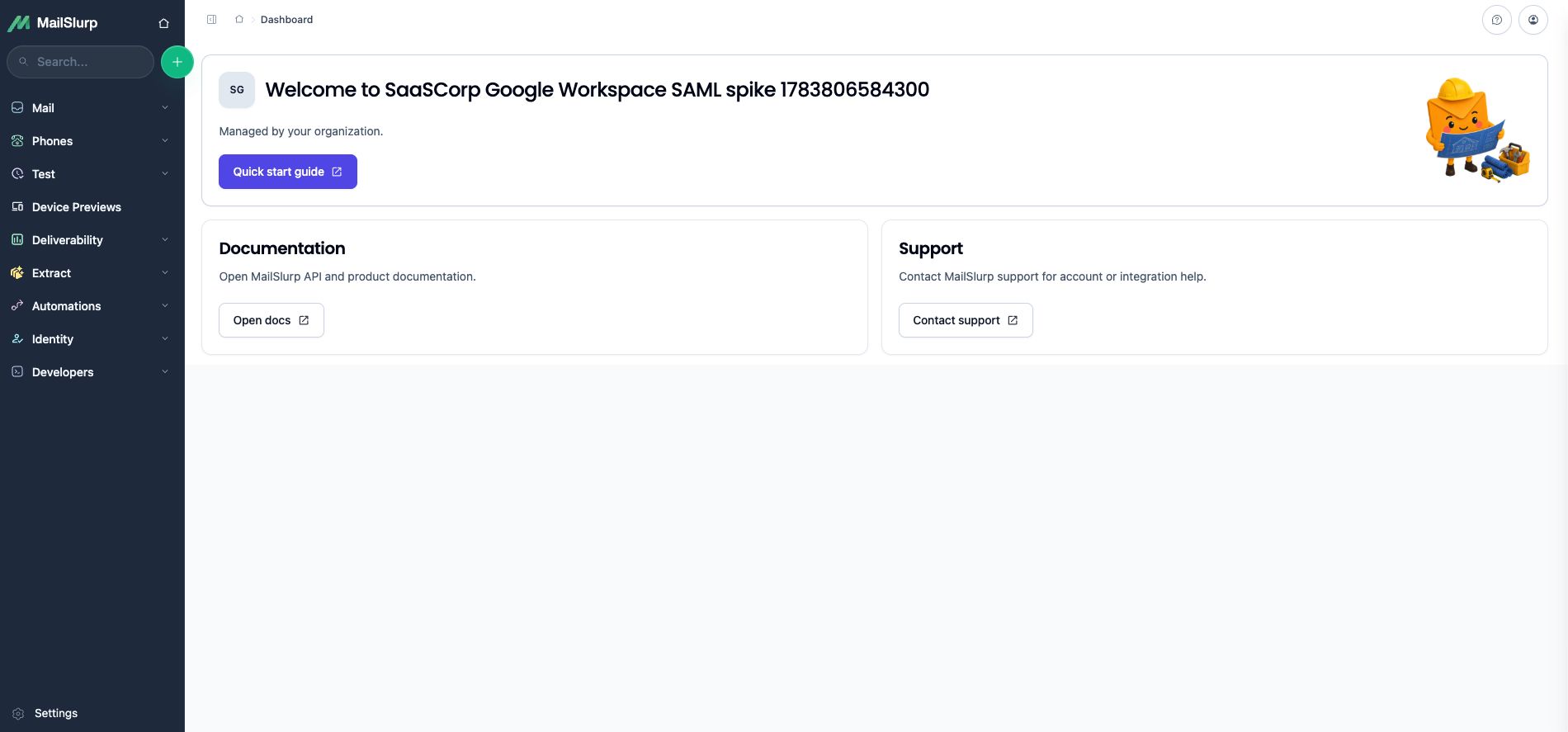

Expected login flows

DEV user

1. The user opens the MailSlurp SAML login URL or launches the Google app.
2. Google authenticates the user.
3. Google emits the groups attribute containing the DEV group value.
4. MailSlurp creates or pairs the organization user.
5. MailSlurp assigns the DEV user role.
6. The user can enter the default organization context and the DEV environment grant.

PTEST, STEST, and VTEST users

The flow is the same for each environment. Google emits the matching group value, MailSlurp assigns the matching role, and the user can enter the environment grant restricted to that role.

Multi-environment users

If a user belongs to more than one mapped Google group, MailSlurp can assign more than one mapped role during sign-in. The user can then enter each environment grant allowed by those roles.

Users with no mapped group

If a user can launch the Google app but no role mapping matches, MailSlurp uses the organization's SAML default-role behavior. For strict environment lockdown, avoid broad default roles and keep each environment grant restricted to a mapped role.

Users without Google app access

If the app is off for a user and none of their groups have app access, Google blocks the app launch before MailSlurp receives a SAML assertion.

Validation checklist

Before rollout:

1. Confirm the Google app shows ON only for the intended groups.
2. Confirm the Google SAML attribute mapping sends selected groups to the groups attribute.
3. Create one MailSlurp SAML role mapping for each emitted group value.
4. Test one user assigned only to the DEV group.
5. Confirm that user receives the DEV MailSlurp role.
6. Confirm that user can enter only the expected role-restricted environments.
7. Repeat with PTEST, STEST, and VTEST users.
8. Disable email login only after SAML login has been verified.

Troubleshooting

• If Google rejects the setup, confirm the ACS URL and Entity ID match the MailSlurp service provider values.
• If Google says the Entity ID is already used, set a unique Entity ID in Google and set the same value as the MailSlurp audience.
• If the user cannot launch the app, confirm the app is on for the user's Google group.
• If the user signs in but receives no MailSlurp role, check the exact groups claim value emitted by Google and update the MailSlurp mapping.
• If users see too many environments, review each environment grant and restrict it to the intended MailSlurp role.
• If users see too few environments, confirm they belong to the correct Google group and that the matching MailSlurp role mapping is enabled.
